TIG Stubby Gas Lens Collet Bodies 17CB20 17GL 10N Series Glass Cups Clear Quartz Nozzle 4#~8# Alumina Nozzles Ceramic Cups 53N 13N series for SR WP 17 18 26 TIG Welding Torch 54pcs

Product Description

Package listing:
54pcs Packing Listing:

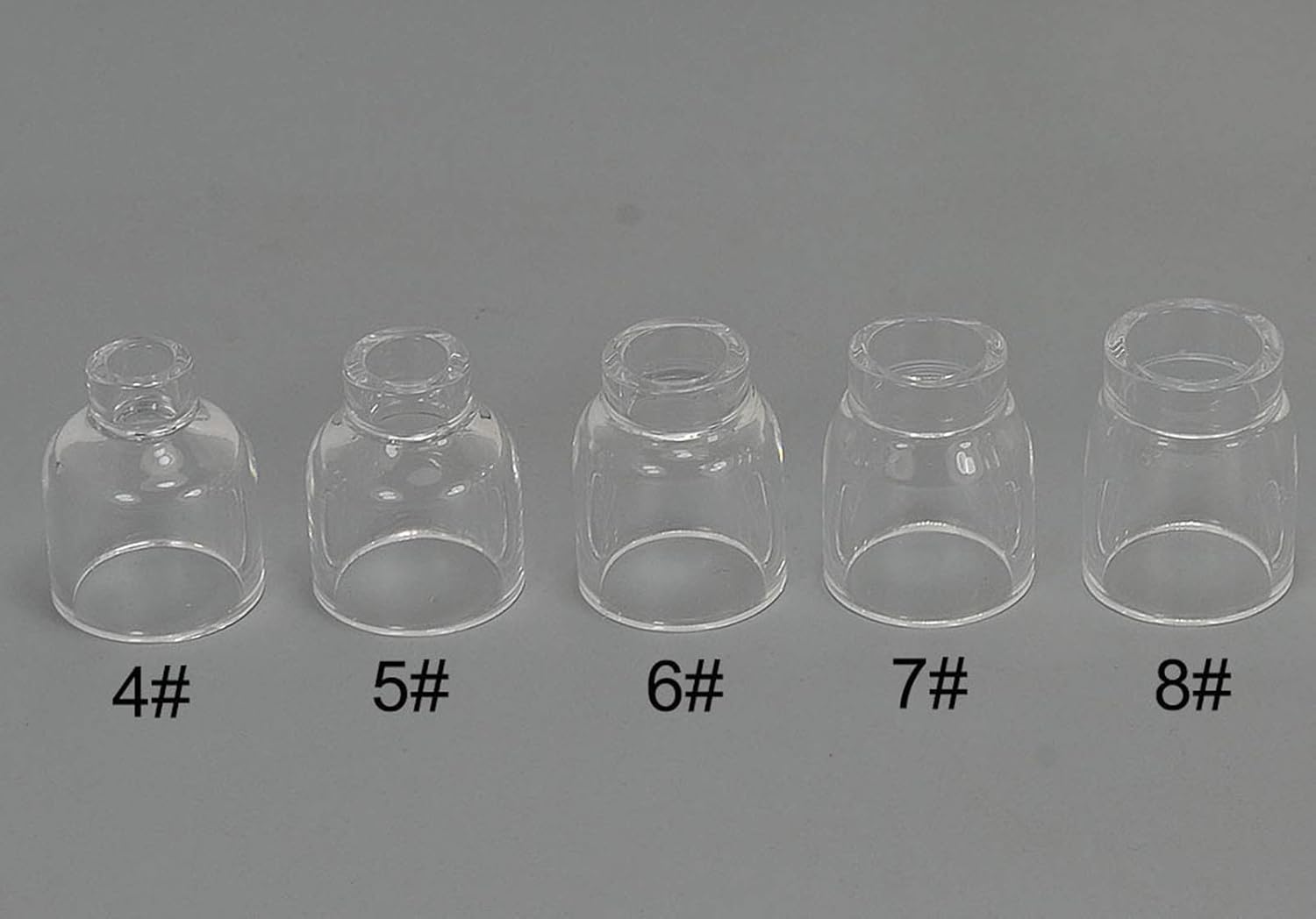

Glass Cup 5pcs
1pcs #4 ( 1/4" x 1" & 6.5mm x 25mm );
1pcs #5 ( 5/16" x 1" & 8.0mm x 25mm );
1pcs #6 ( 3/8" x 1" & 9.5mm x 25mm );
1pcs #7 ( 7/16" x 1" & 11.0mm x 25mm );
1pcs #8 ( 1/2" x 1" & 12.5mm x 25mm )

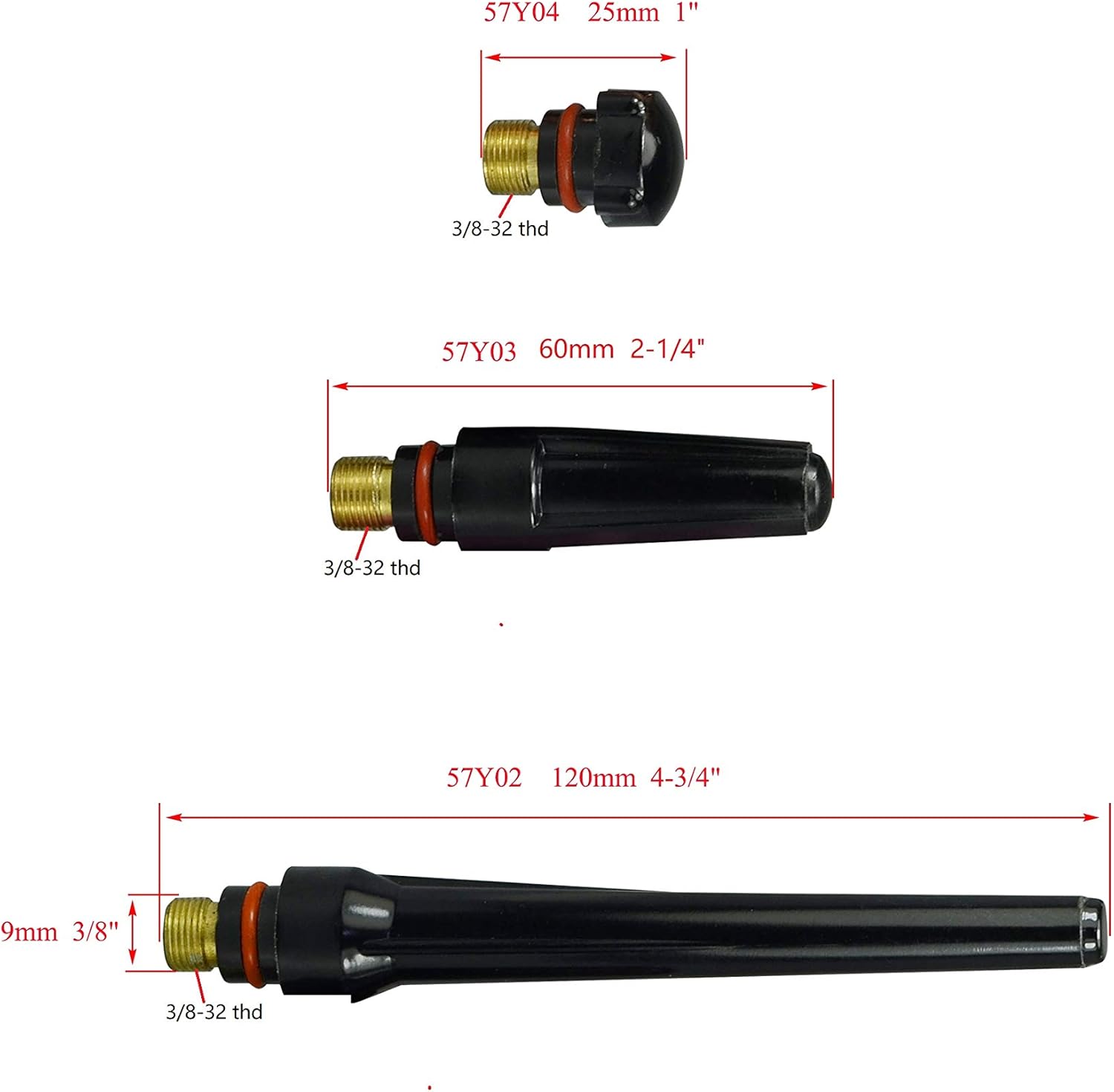

TIG Back Cap 3pcs
1pcs 57Y02 Long
1pcs 57Y03 Medium
1pcs 57Y04 Short

1pcs 18CG-20 cup gasket
1pcs TIG Stubby Gas Lens insulator 17GLG20

TIG ceramic cup 10pcs
1pcs 13N08,#4 1/4" x 1-3/16" & ( D6.5 x 30mm )
1pcs 13N09,#5 5/16" x 1-3/16" & ( D8.0 x 30mm )
1pcs 13N10,#6 3/8" x 1-3/16" & ( D9.5 x 30mm )
1pcs 13N11,#7 7/16" x 1-3/16" & ( D11.0 x 30mm )
1pcs 13N12 #8 1/2" x 1-3/16" & ( D12.5 x 30mm )
1pcs 53N58 #4 ( 1/4” x 1”& ID6.5mm x 25.5mm )
1pcs 53N59 #5 ( 5/16” x 1”& ID8.0mm x 25.5mm )
1pcs 53N60 #6 ( 3/8” x 1”& ID9.5mm x 25.5mm )
1pcs 53N61 #7 ( 7/16” x 1”& ID11.00mm x 25.5mm )
1pcs 53N61S #8 ( 1/2” x 1”& ID12.50mm x 25.5mm )

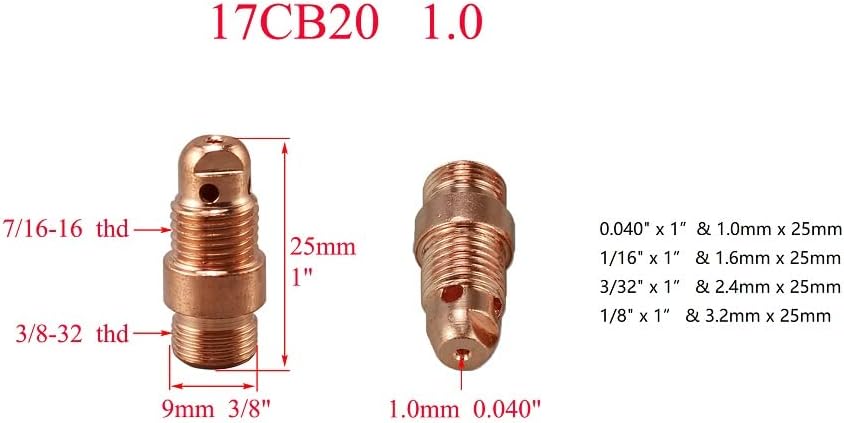

TIG collets body 4pcs
1pcs 17CB20 ( 0.040" x 1” & 1.0mm x 25mm )
1pcs 17CB20 ( 1/16" x 1” & 1.6mm x 25mm )
1pcs 17CB20 (3/32" x 1” & 2.4mm x 25mm )
1pcs 17CB20 ( 1/8" x 1” & 3.2mm x 25mm )

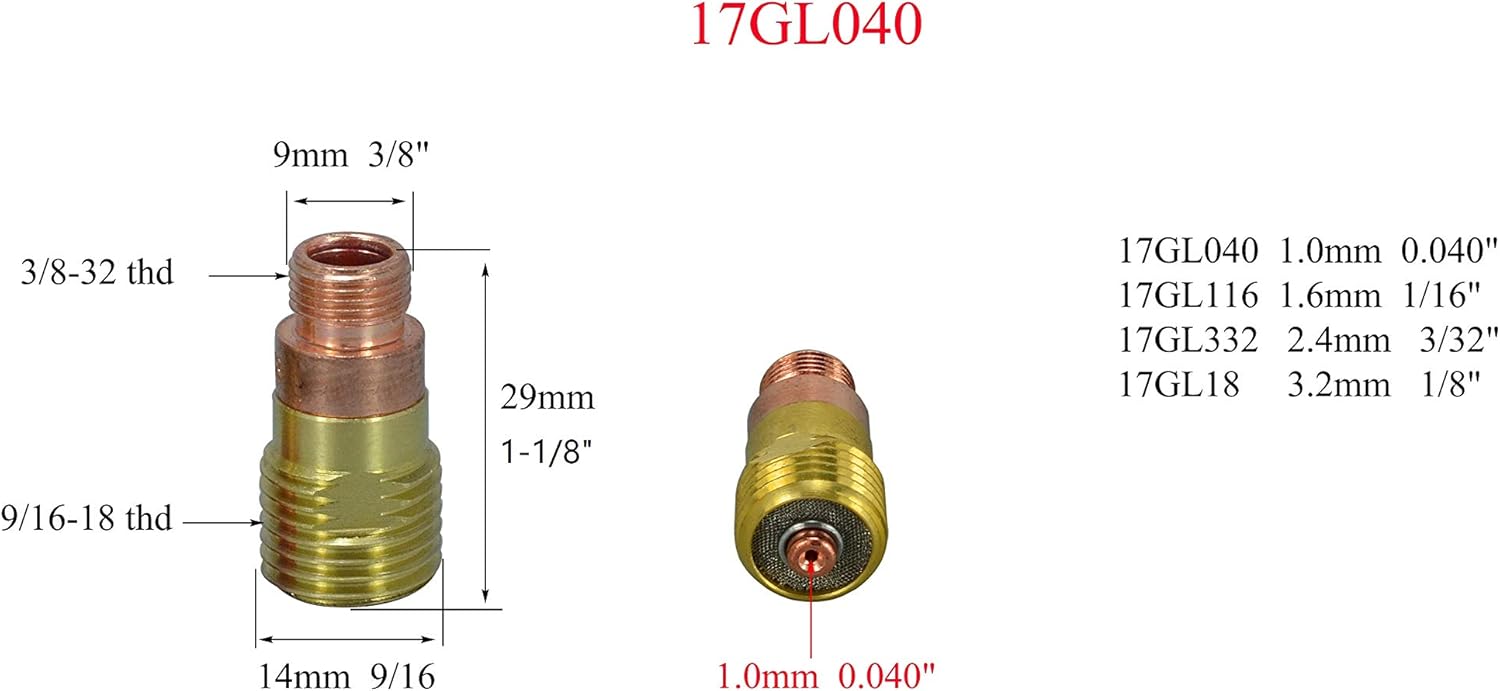

TIG Stubby Gas Lens
1pcs 17GL040 ( 0.040" x 1-1/8”& Ø1.0mm x 29mm)
1pcs 17GL116 ( 1/16" x1-1/8” & Ø1.6mm x 29mm )
1pcs 17GL332 ( 3/32"x1-1/8” & Ø2.4mm x 29mm )
1pcs 17GL18 (1/8"x1-1/8” & Ø3.2mm x 29mm)

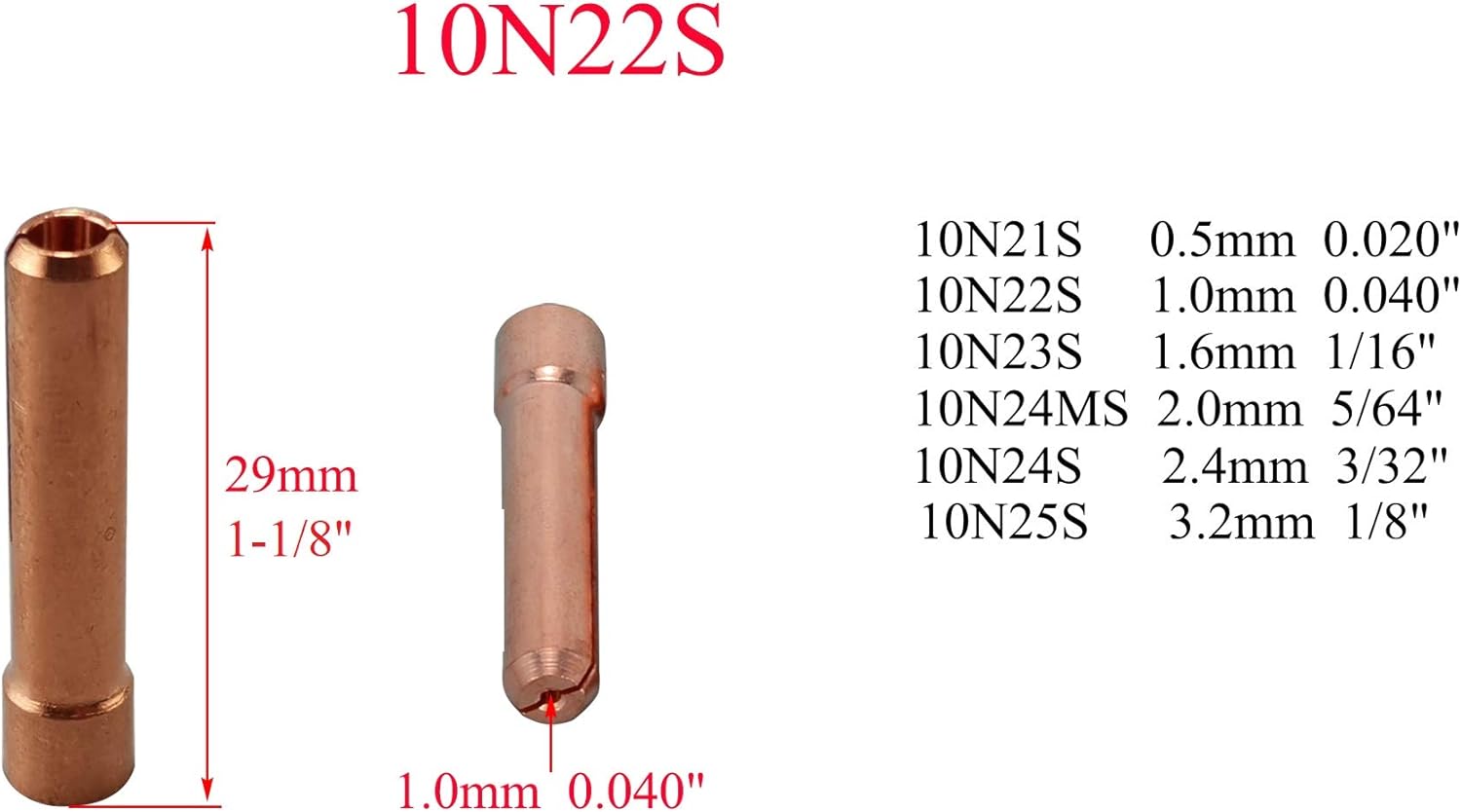

TIG Collet 8pcs
2pcs 10N22S ( 0.040" x 1-1/8”& Ø1.0mm x 29mm)
2pcs 10N23S( 1/16"x 1-1/8” & Ø1.6mm x 29mm )
2pcs 10N24S ( 3/32" x1-1/8” & Ø2.4mm x 29mm )
2pcs 10N25S (1/8"x1-1/8” & Ø3.2mm x 29mm)

18pcs Temperature Resistant O-rings

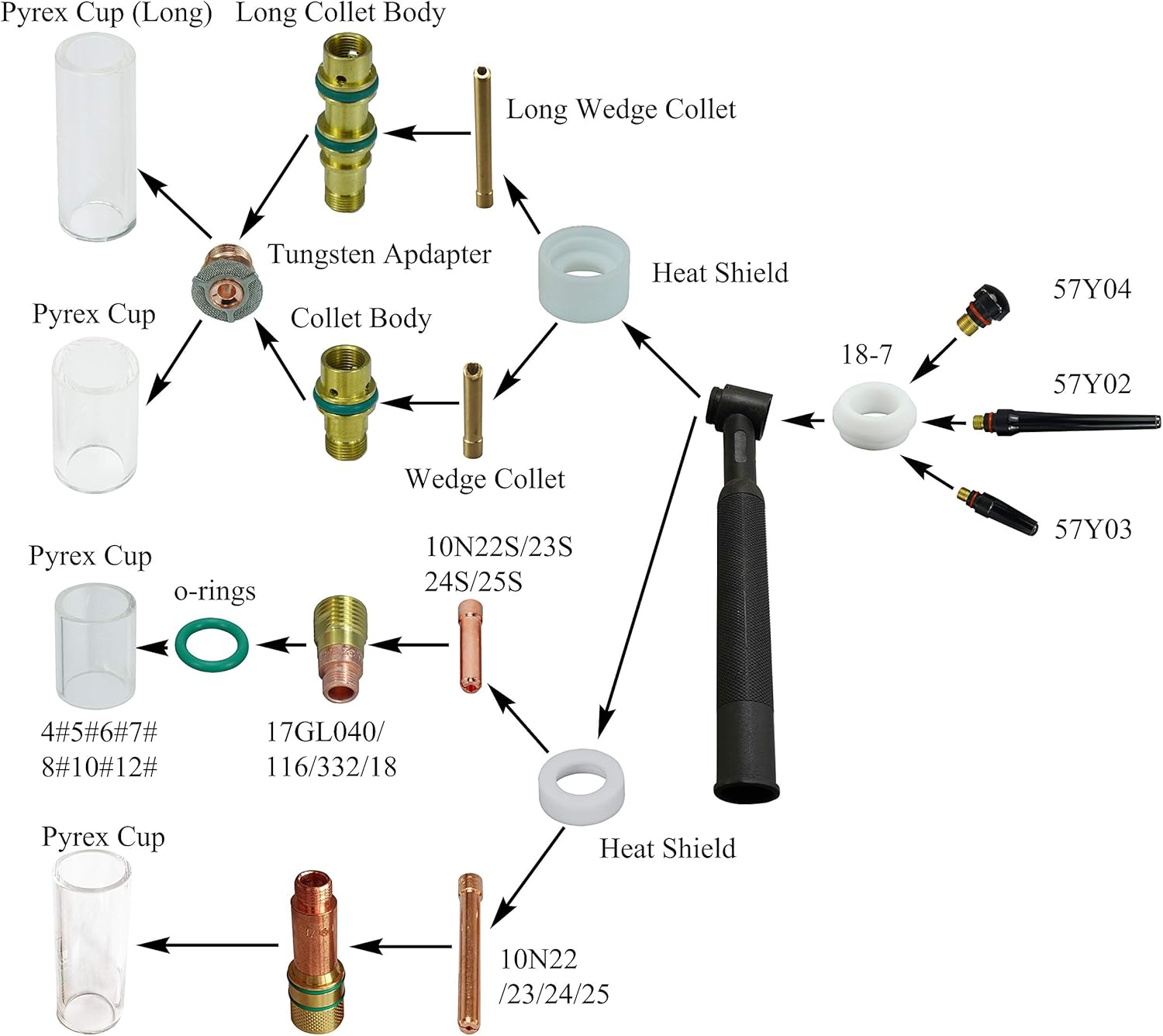

This Studdy Gas lens & Collet kits fits all 17 & 26 series air cooled torches and 18 series water cooled torches, including the Lincoln PTA-17, PTA-18 and PTA-26 torches, Miller Diamondback DB17,DB18 and DB 26 torches, along with the Weld craft WP-17, WP-18
